The Micro-LAM OPTIMUS T+1 Laser Assisted Tool
The only tool you need to multiply productivity on your ultra precision machines.
Micro-LAM, Inc., offers cutting edge technology through its state-of-the-art retrofitable system that is set to be a game changer in the manufacturing industry. The hybrid laser-diamond cutting tool system provides profitable solutions for machining hard and brittle materials.
Technology Overview

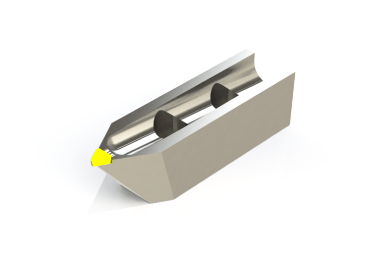

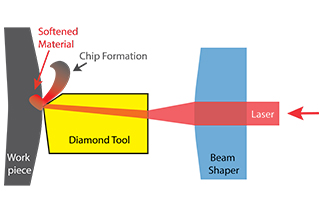

The OPTIMUST+1 is configured such that an IR beam passes through an optically transparent diamond cutting tool and delivered precisely at the tool-workpiece interface. This system is uniquely designed to preferentially heat and soften only the tool contact region via laser radiation. The diamond tool removes the now more ductile and less brittle material with significantly less cutting forces.
Competitive Advantage

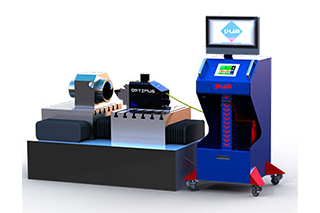

The innovative Micro-LAM system is the only one of its kind that has been proven through extensive research and testing. The quick and easy bolt-on system delivers ultra-precision machining capabilities for advanced engineered ceramics, semiconductors, glass, metals and more, leading to greater efficiency and improved profitability. The technology improves productivity and quality, while minimizing material waste and tooling costs for industries such as optics, aerospace, defense and armor, semiconductor, automotive and more.
Improved Part Quality
The thermal softening effect enhances the ductility and reduces the brittleness of the material making it more machinable. Machining a more ductile materials results in a better surface finish and minimal to no surface and subsurface damage.
Extended Tool Life
Lower cutting forces from decreased material hardness promotes extended tool life. The hardness reduction due to laser softening is only temporary and does not alter the final material properties.
Increased Productivity
Increase your productivity by minimizing machine downtime and making more parts out of a tool setup. In addition, the system allows for faster machining speeds without compromising on surface quality.

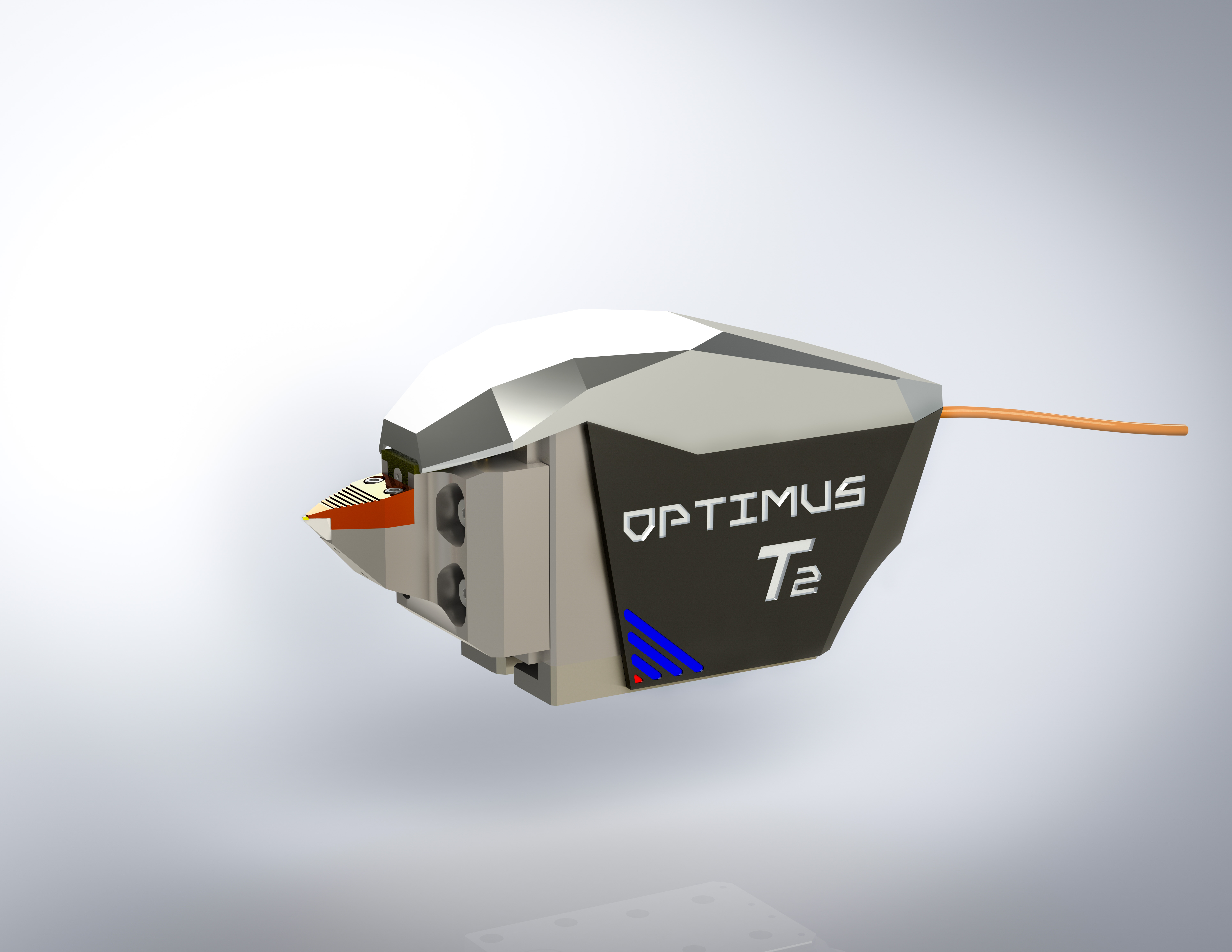

The Micro-LAM OPTIMUST2 Laser Assisted Tool

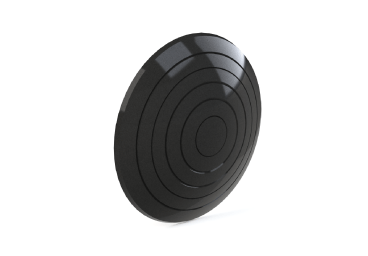

The original OPTIMUS T+1 focused on improved throughput for conventionally diamond turned materials. Now, the OPTIMUS T2 has expanded those materials into glass. With the addition of the laser in the OPTIMUS T2 it is possible to remove material and receive near specular surfaces on glass. The addition of the OPTIMUS T2 will allow companies with existing diamond-turning machines to utilize those machines to diamond-turn glass. Creating the potential to bring that aspect of fabrication in-house.
